Throttle / Carb Linkage

Deluxe Carb Linkage Kit - Short
Click image to enlarge
Deluxe Carb Linkage Kit - Short
Part #: 52-32720

Deluxe throttle linkage kit includes everything in the standard kit plus a throttle return bracket and adjustable throttle stop.

  • All the parts you need in one handy kit
  • Heat treated aluminum tube once formed won't straighten out and cut throttle travel
  • Use straight or formed to clear air cleaner (requires 1/4-28 tap)

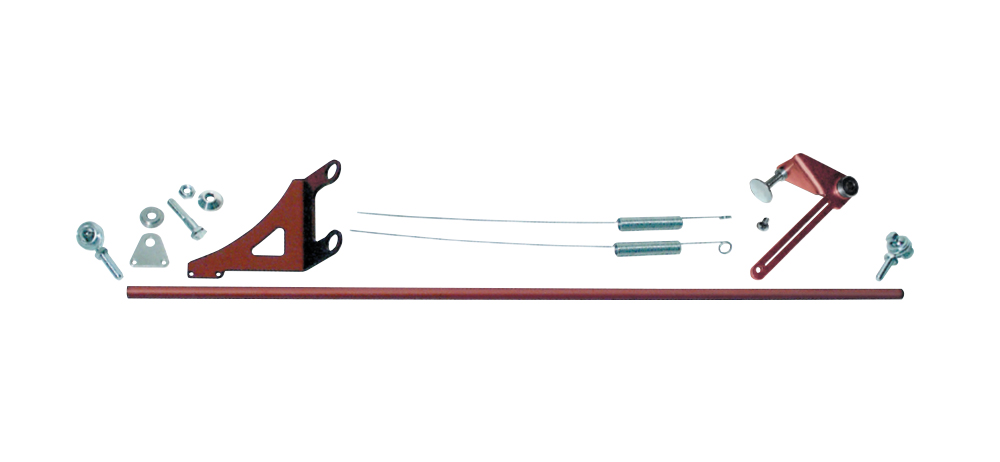

  • Includes 2 all metal rod ends, 6061 T6 aircraft aluminum tube, Holley® carb bushing, 2 return springs and bracket, bolts and nuts and adjustable throttle stop
  • Anodized red lightweight aluminum
  • Throttle rod length - 23-1/4"
  • Only fits small block Chevy
  • The throttle stop will not work on the Dominator Carburetor.

Note:  Both ends not threaded so you can cut to fit. 1/4"-28 tap is required to complete the installation.

California Proposition 65 Statement


Rod Material: Heat treated aircraft aluminum
Rod Finish: Red anodized
Rod Length: 23 1/4"
Throttle Stop Included: Yes - Holley® 4 bl
Throttle Stop Material: Lightweight aluminum
Throttle Stop Finish: Red anodized
Throttle Stop Length: 5" adjustable
Throttle Return Bracket Included: Yes
Throttle Return Bracket Material: Lightweight aluminum
Throttle Return Bracket Finish: Red anodized
Return Springs Included: Yes - 2 each
Hardware Included: Yes
